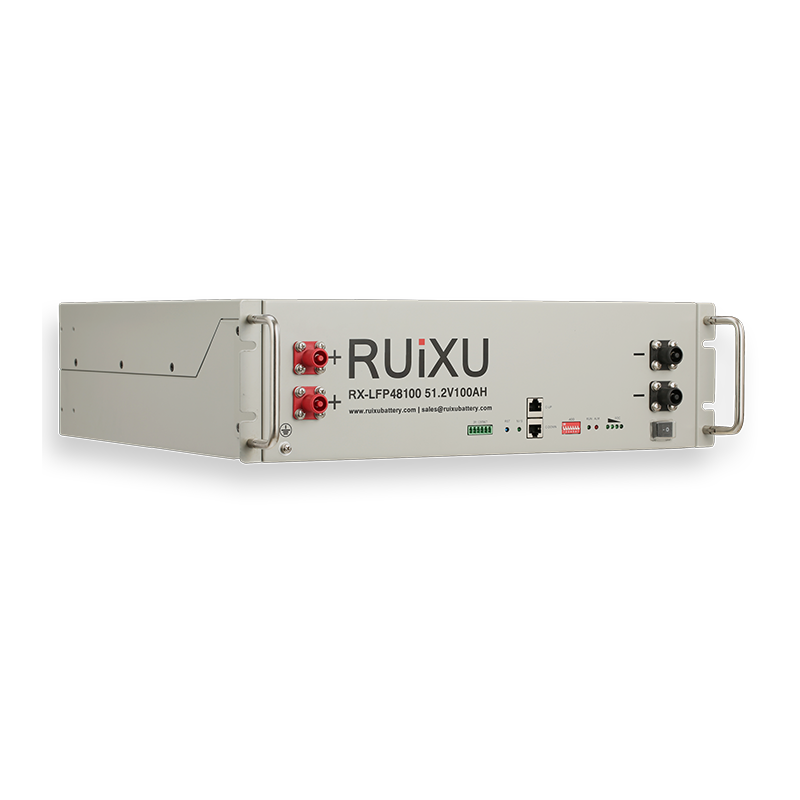

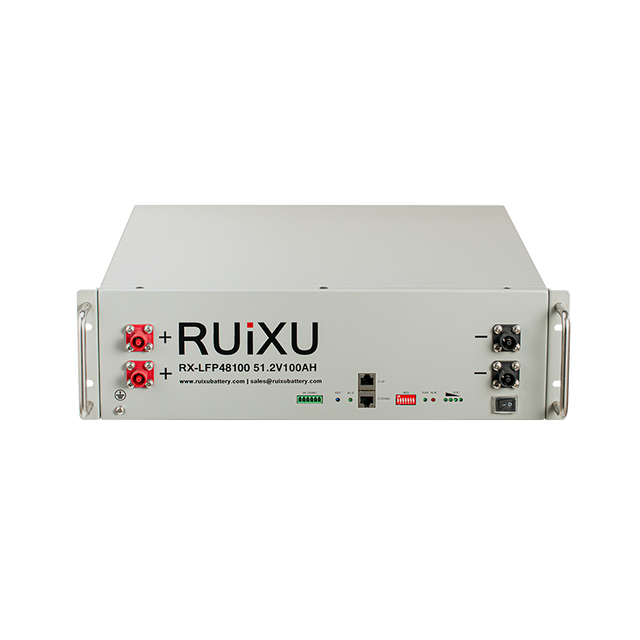

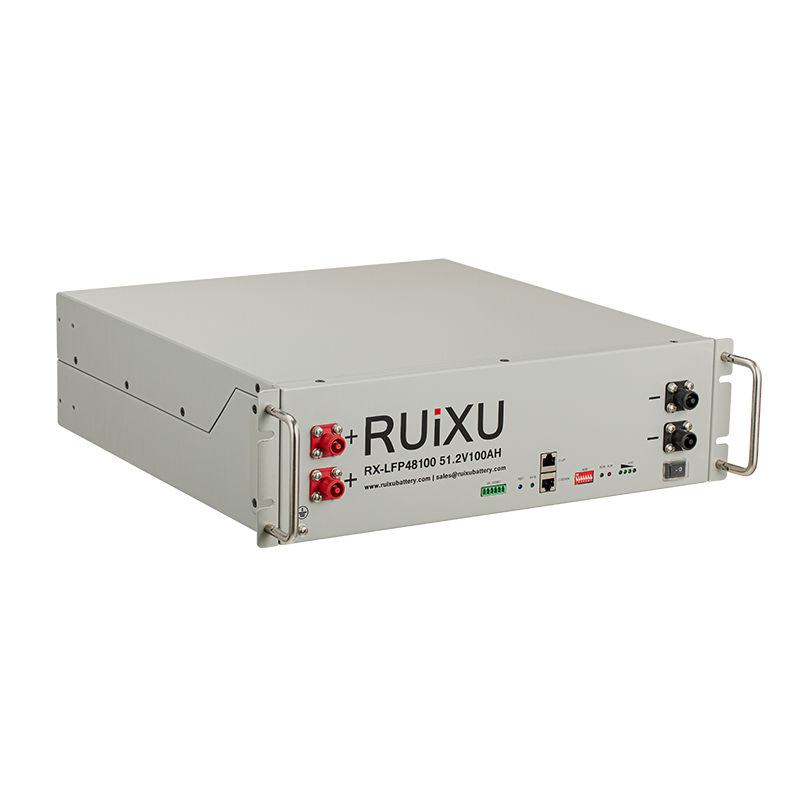

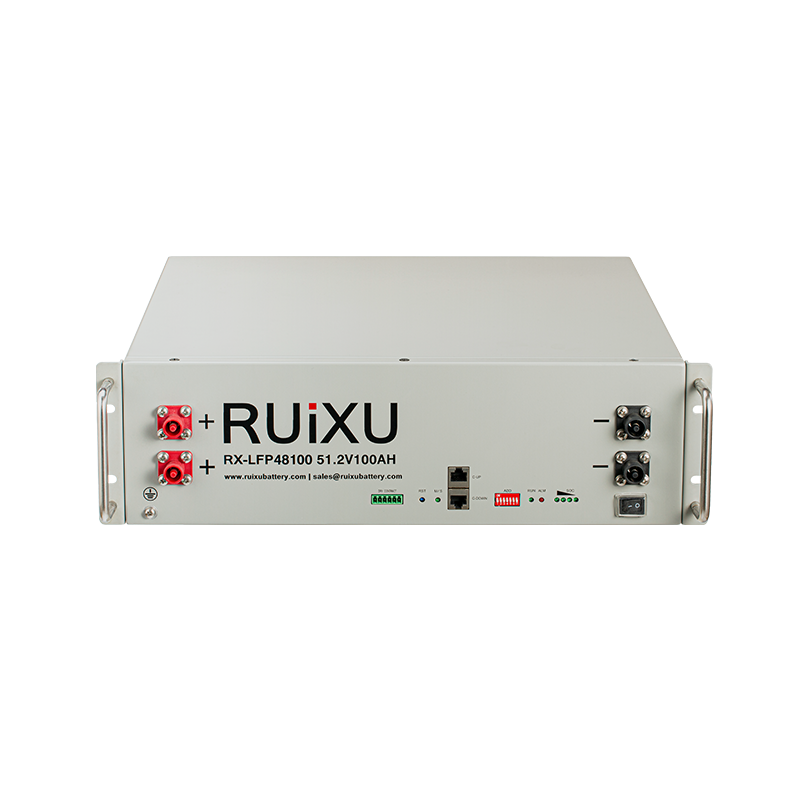

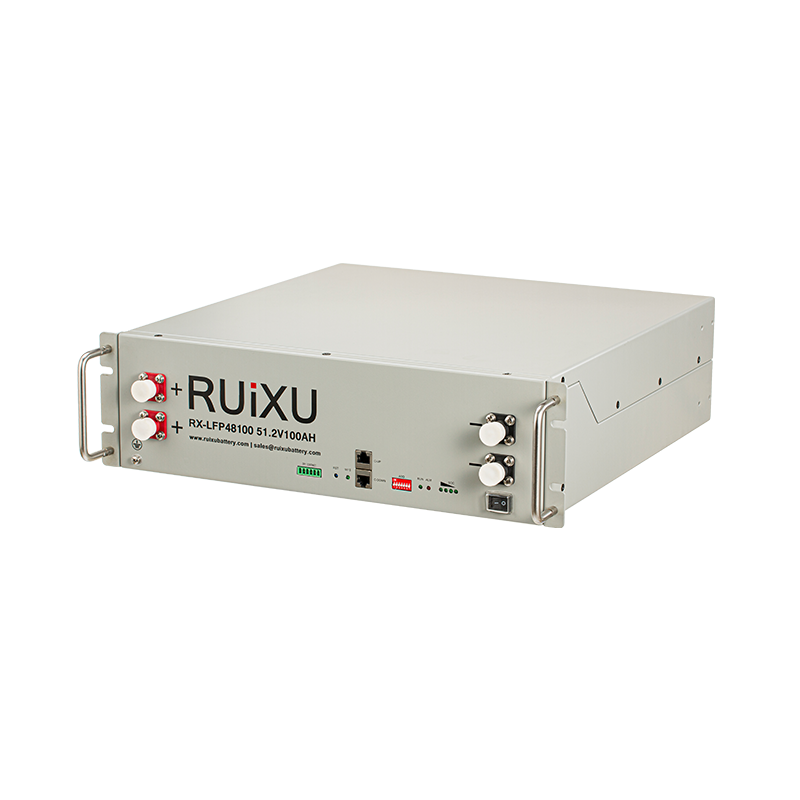

RX-LFP48100 – 48V 100Ah 5.12kWh Server Rack Lithium Battery
Compact, Scalable Energy Storage for Indoor and Outdoor Applications

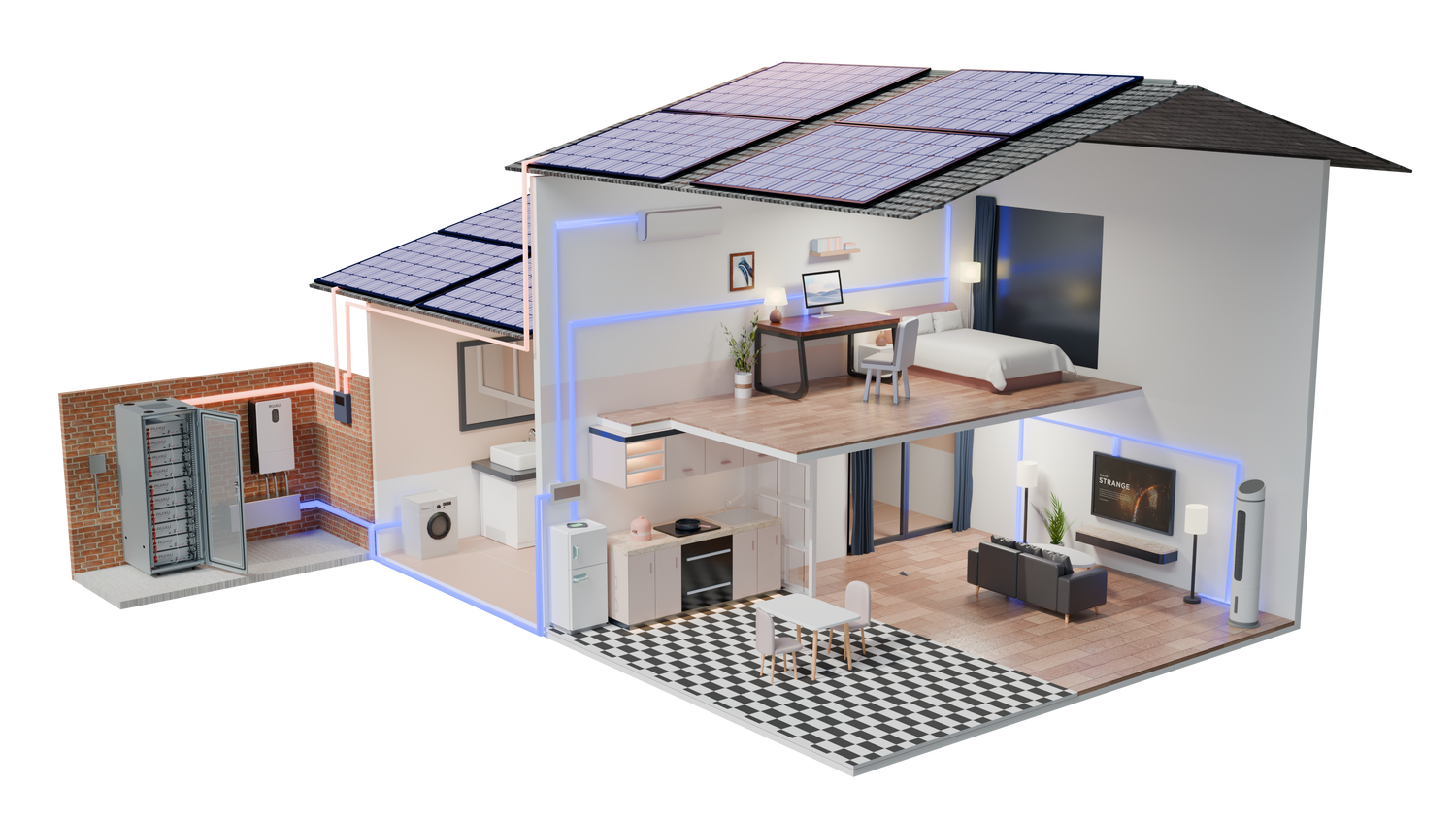

The RX-LFP48100 is a high-performance 48V lithium battery module designed for server rack installations. With a compact 3U form factor and support for up to 32 units in parallel, it’s ideal for residential, commercial, and solar energy storage systems that require flexibility, reliability, and long-term performance.
Key Features

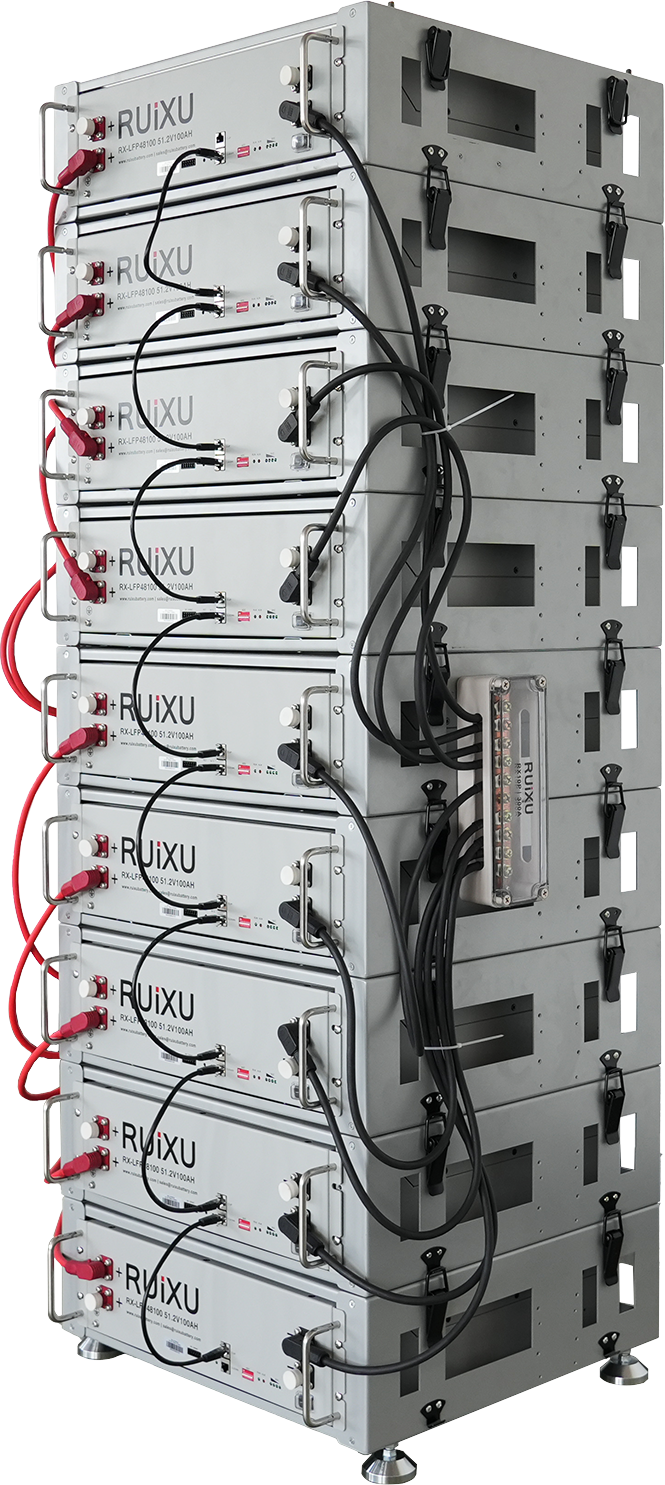

- Modular Design: Supports up to 32 units in parallel, scalable from 5kWh to 160kWh without external controllers.

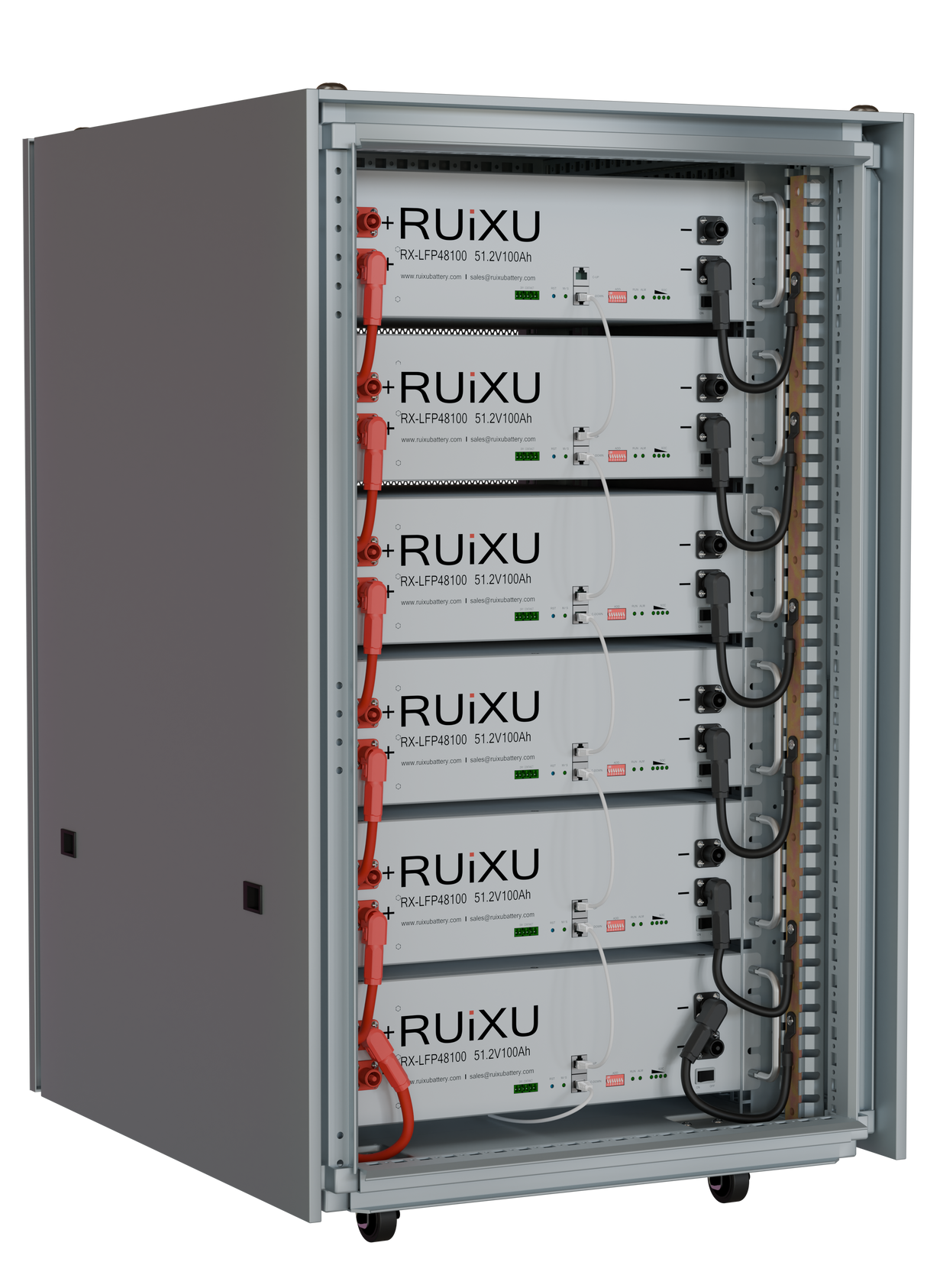

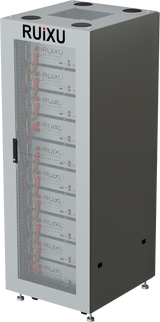

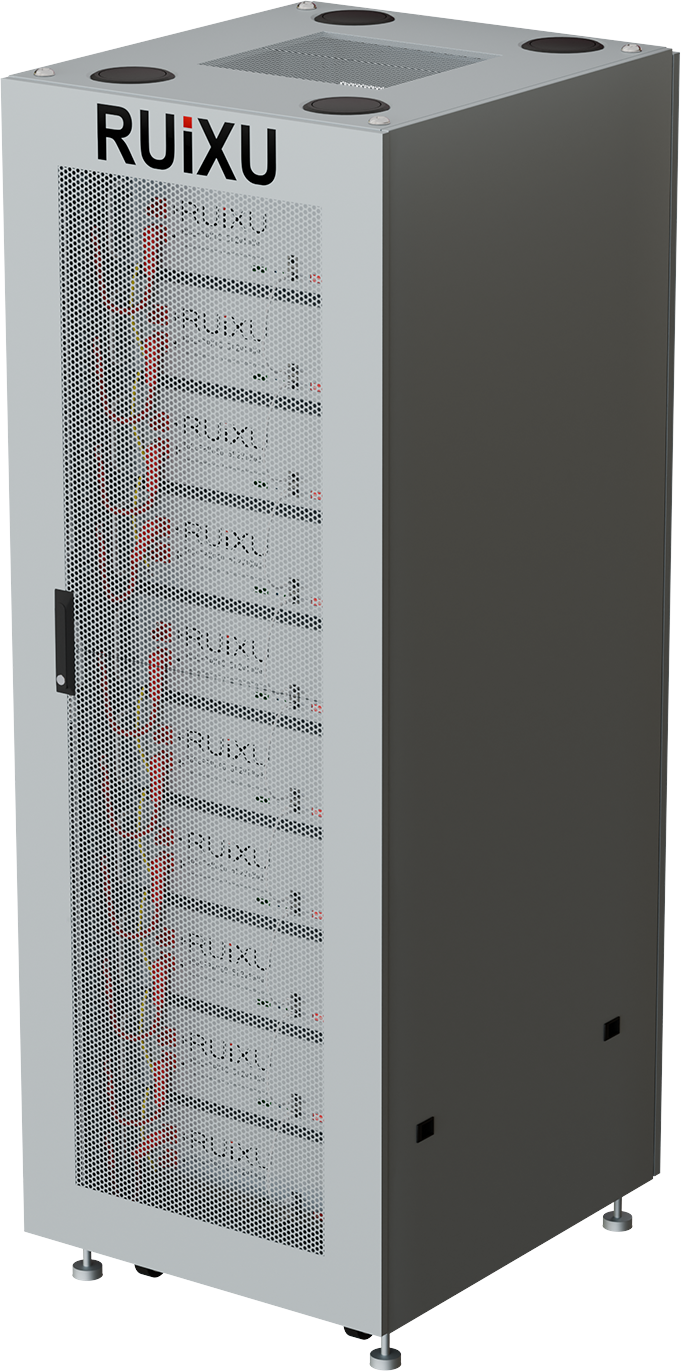

- Compact Rack Format: 3U height fits standard 19" server racks for space-efficient integration.

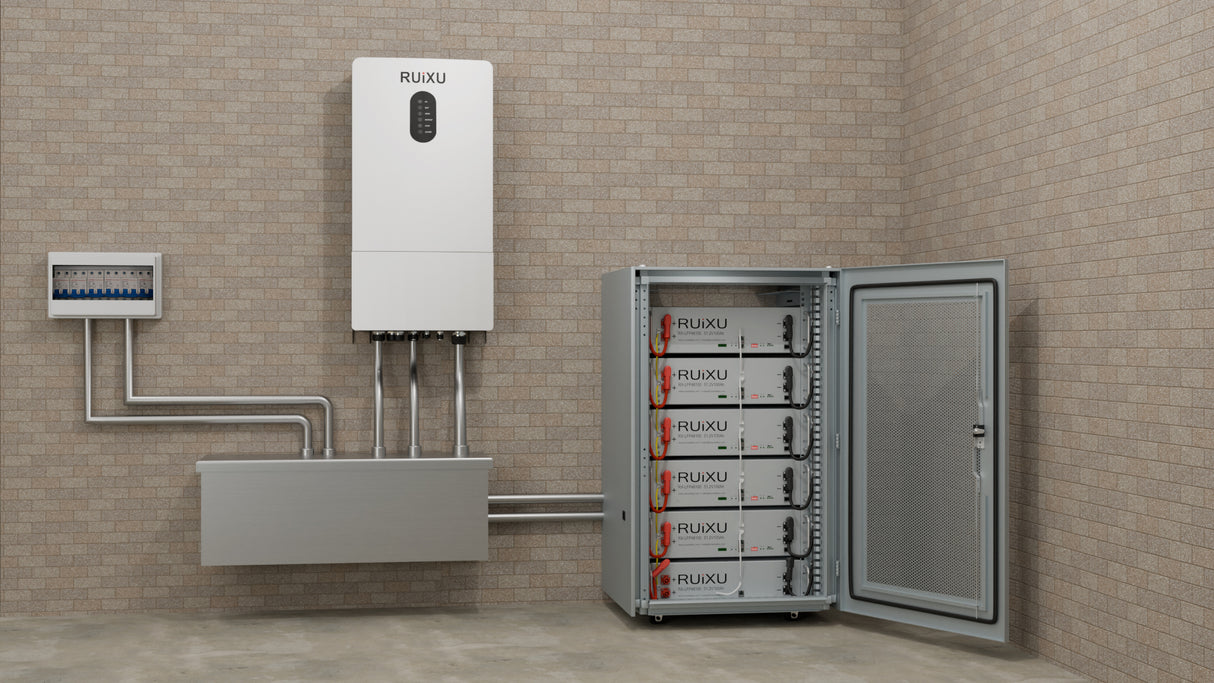

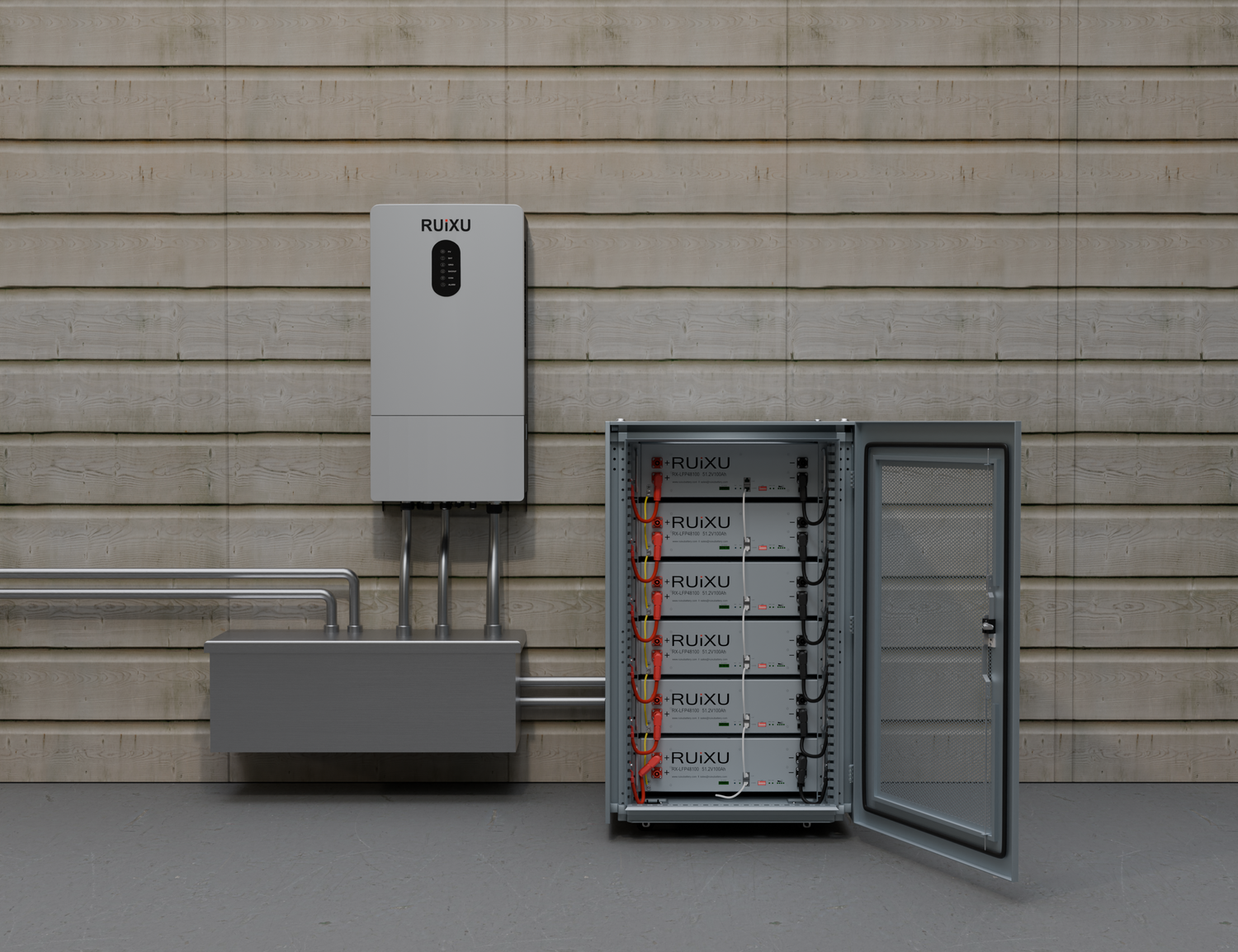

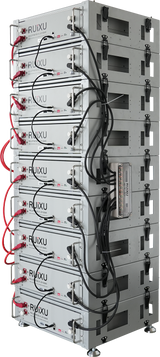

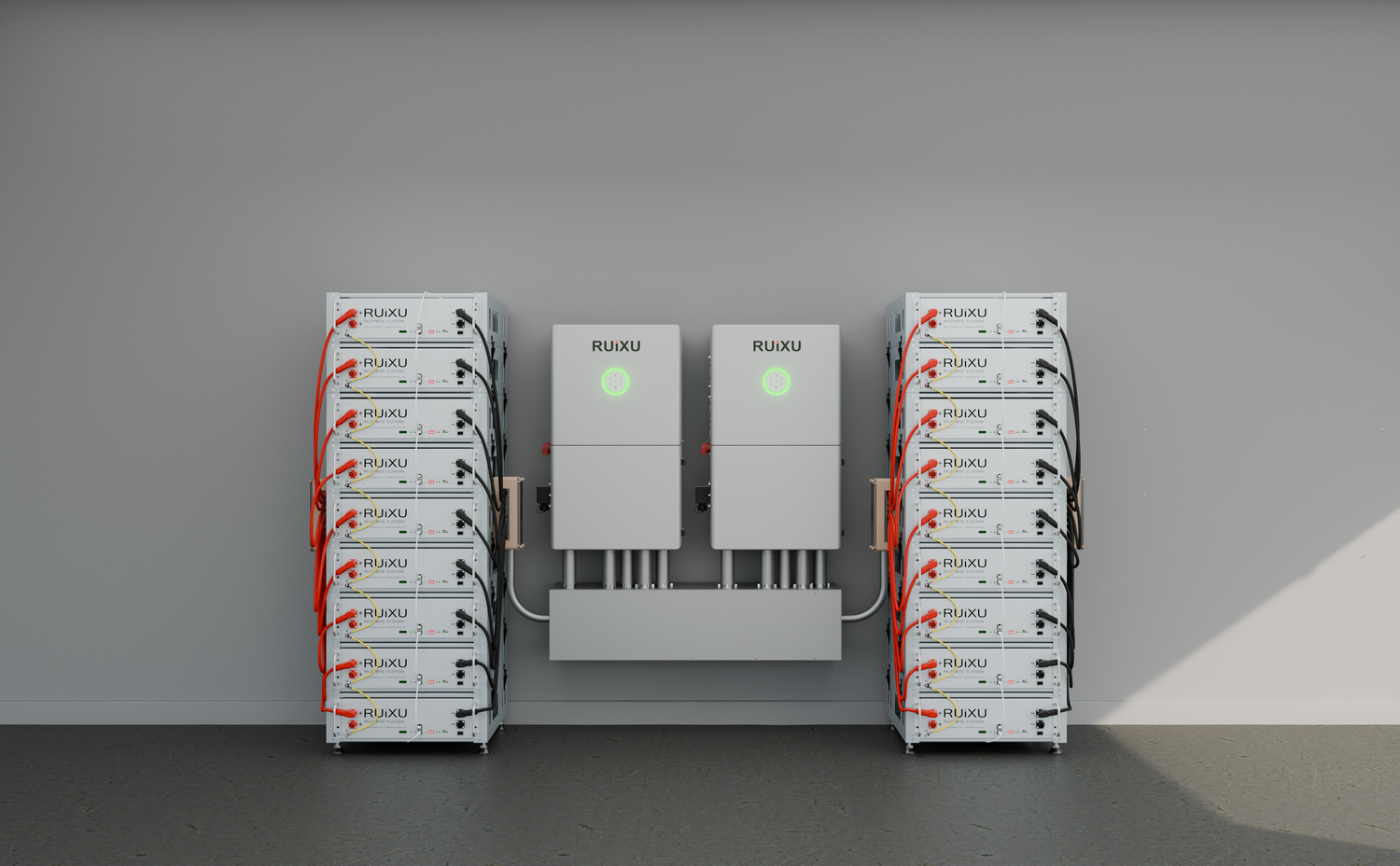

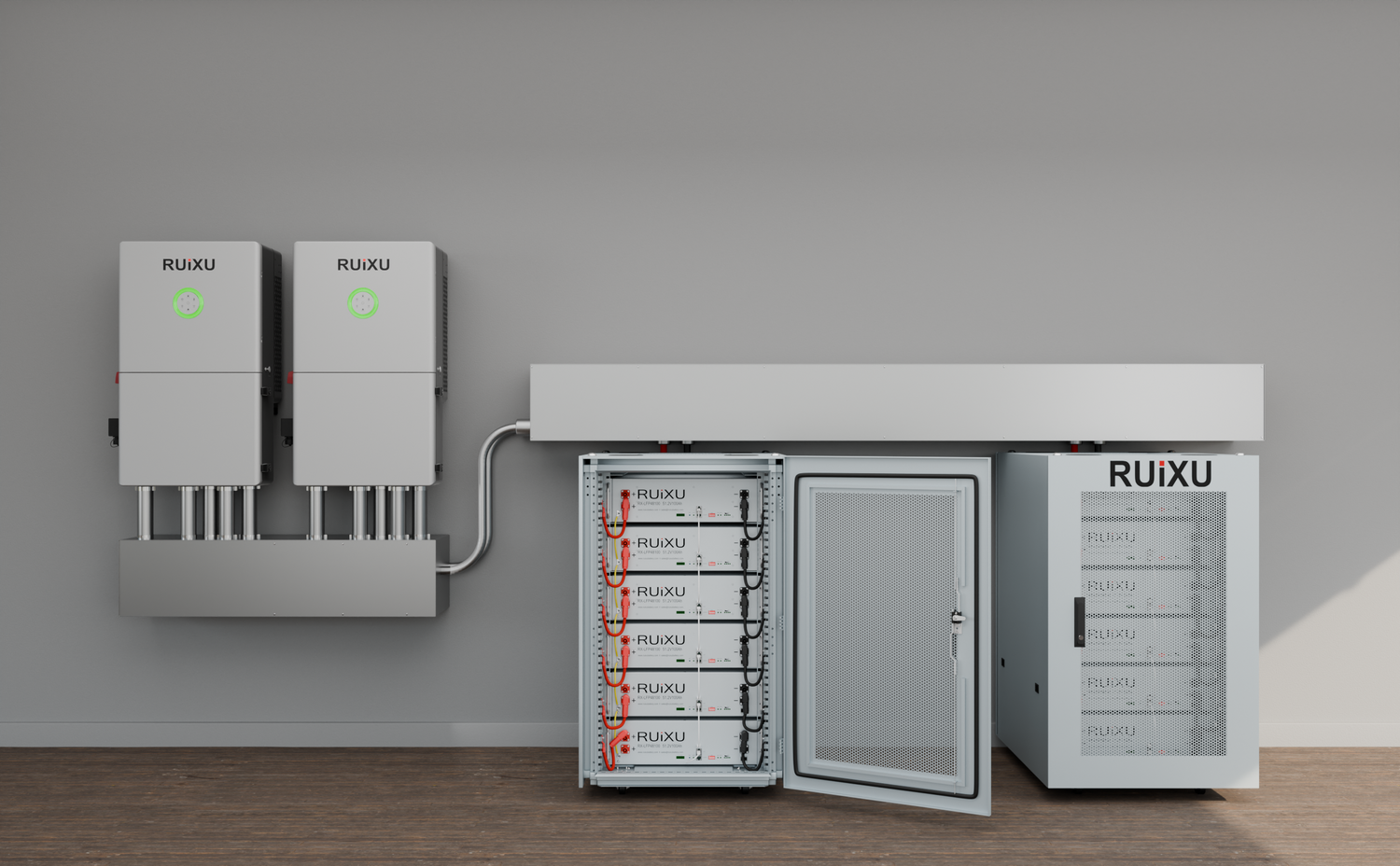

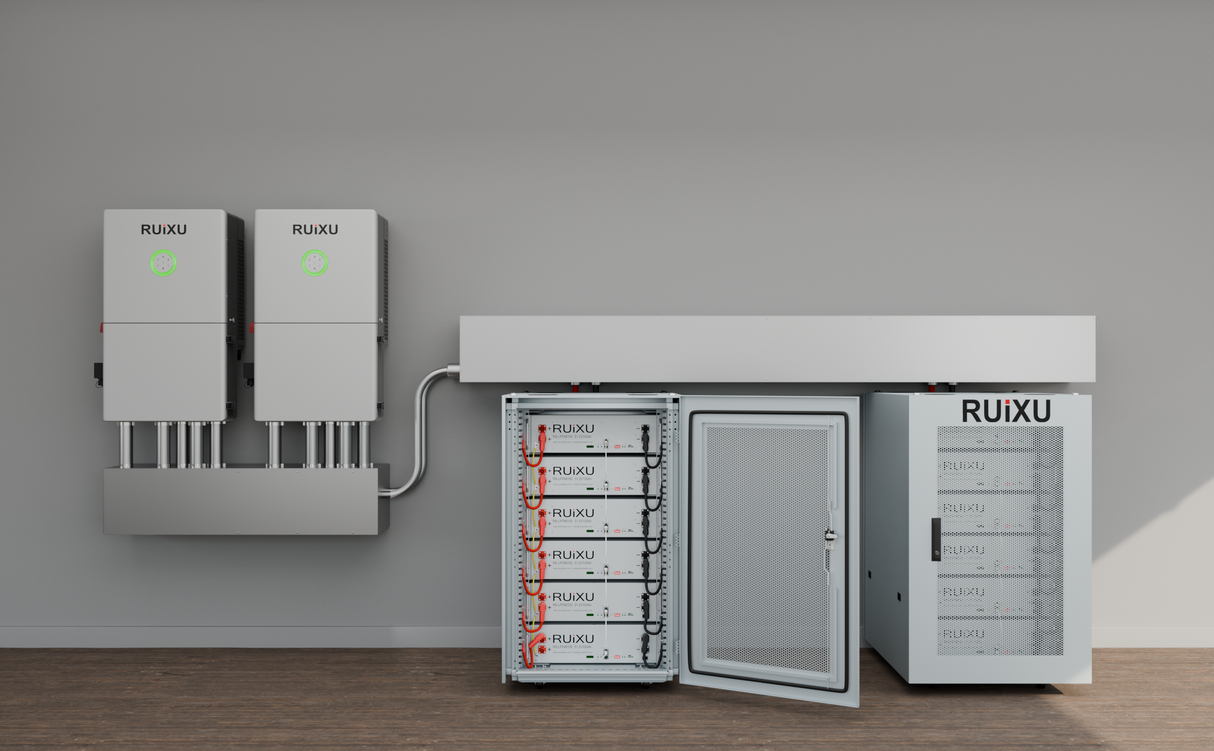

- Flexible Installation: Suitable for rack, wall, floor, or stacked configurations.
- Closed Loop Communication: DIP switch settings allow RS485 baud rate and inverter protocol selection.
- Wide Inverter Compatibility: CANbus and RS485 support for major inverter brands.
Technical Specifications
| Attribute | Details |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity @ 0.2C | 100Ah |
| Minimum Capacity @ 0.2C | 100Ah |
| Nominal Energy | 5120Wh |
| Dimensions (W×D×H) | 482.6 × 460 × 133mm (19 × 18.1 × 5.23 inches) |
| Weight | ~47kg (103.6 lb) |
Communication Protocols
- CANbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
- RS485: MPP, Voltronic, RCT, Alpha Outback
Included Components
- (1) RUiXU RX-LFP48100 Server Rack Battery
- (1) RJ45/CAT5e Patch Cable
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables per battery

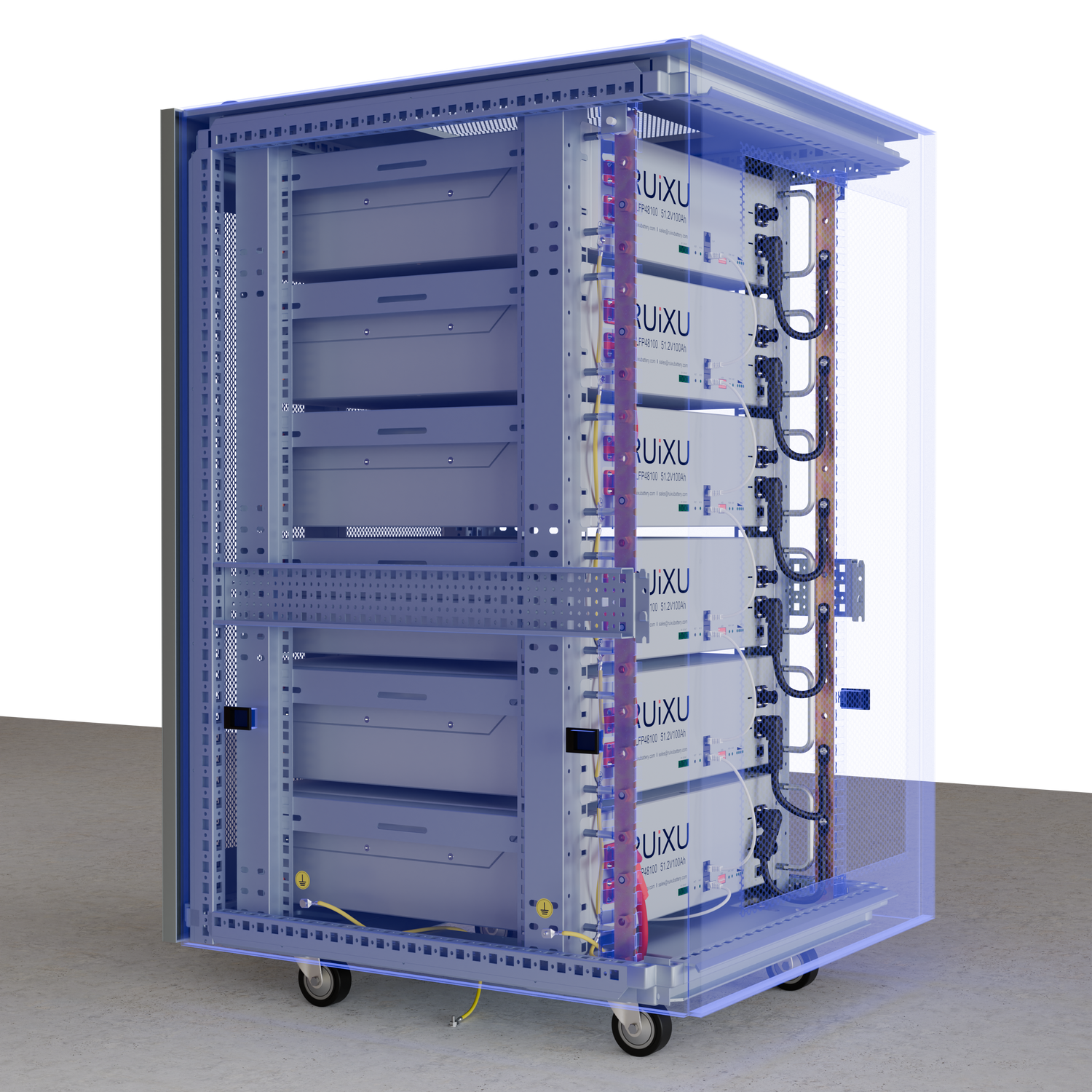

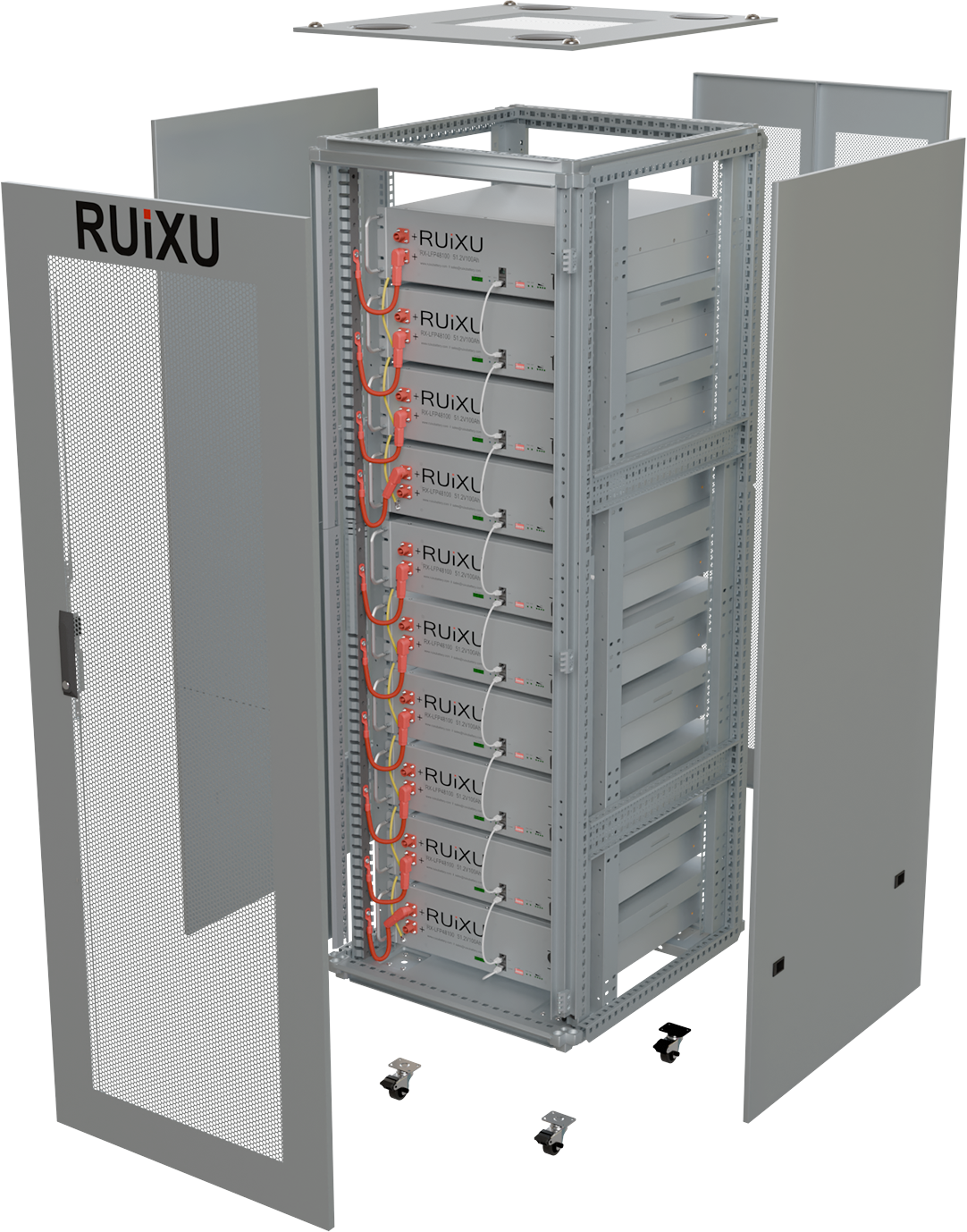

Cabinet Installation Cables
- 300mm cable (battery to cabinet busbar) included for 1.6 slot cabinet installation
- 250mm cable (battery to battery) included for 48V systems rated 2000W–5000W
Certifications & Compliance
- UL1973 Certified
- UL9540A Testing Completed
- IEC62619, UN38.3, CE Compliant
Support & Resources
- Spec Sheet
- User Manual
- Request for bulk purchase
- Contact for any Firmware Update inquiries
- UL1973 Certified
- UL9540A Testing Completed
- Closed Loop Communication with Inverter (Contact for more information)
- Contact for Return, Refund Policy & Warranty Information
Why Choose RUiXU Server Rack Battery?
| RUiXU | Other Brand | |
|---|---|---|
| Form Factor | Ultra-slim 3U (482×460×133.5mm) — compact height saves rack space and improves flexibility | Bulkier 4U (482×420×161mm) or 4.5U designs |
| Installation Options | Supports rack, floor, wall, and stacked mounting configurations | Limited to rack mounting only |
| Inverter Protocol Setup | DIP switch for RS485 baud rate and protocol selection | Requires computer connection to configure protocol |
| Scalability | Connect up to 32 units in parallel — expandable to 160kWh without external controller | Supports only 16 units in parallel |
| Certifications | UL1973, IEC62619, UN38.3, MSDS | None listed |
| Pre-Charge Capability | 1,000,000µF — handles high-power inverter precharging with ease | 20,000µF — limited precharge support |
| Operating Temperature | Charge: -5°C - 59°C Discharge: -10°C -59°C |
Charge: -5°C -59°C Discharge: -10°C -59°C |
